Century Stove CW2500-I


Stocked parts for the Century CW2500 wood insert are listed below
Call for availability of other parts 800-522-8216

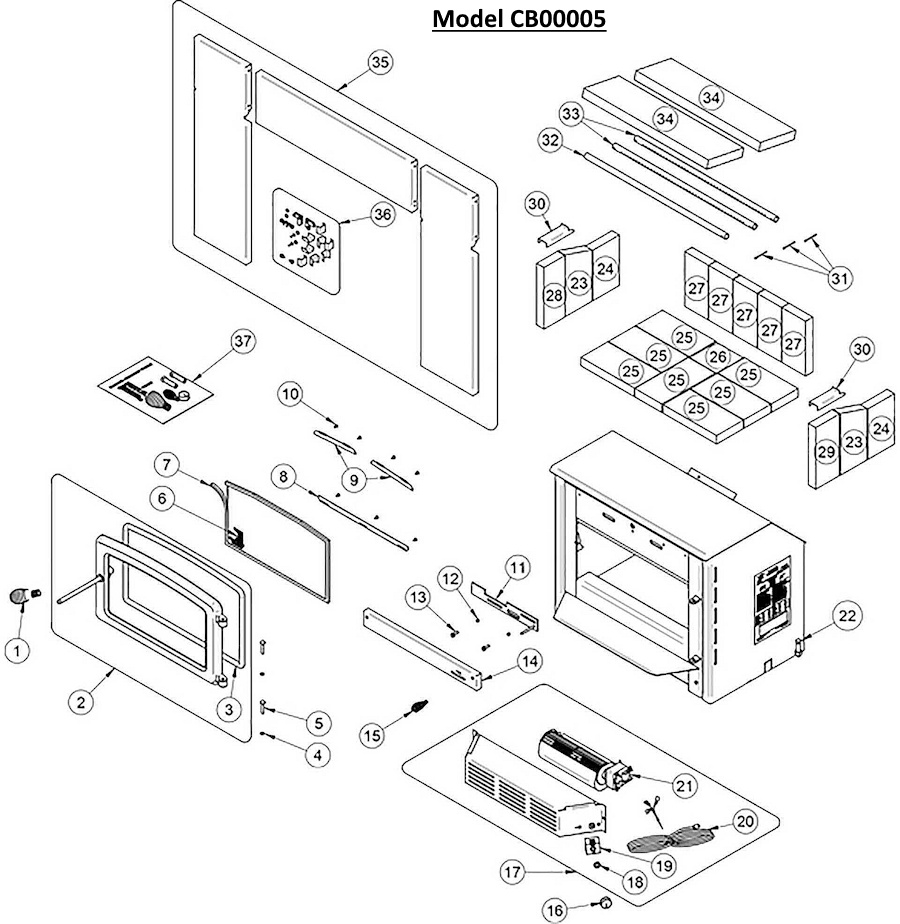

Diagram 1

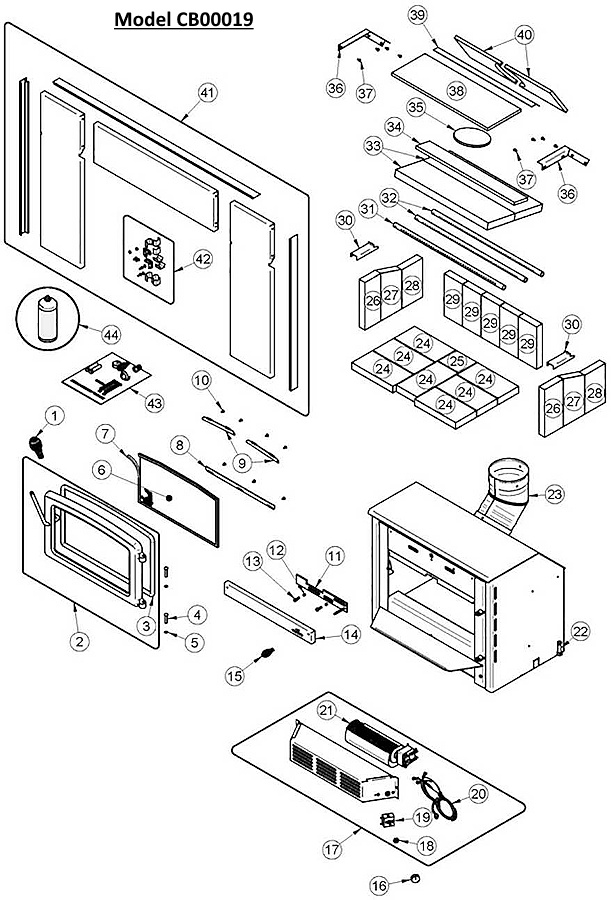

Diagram 2

Century CW2500 Model CB00005 Parts List
Century CW2500 Model CB00019 Parts List

Articles

Wood Stove Maintenance
What is a Wood Stove Fire Brick?
The Importance of Curing Fire Bricks
Advancements in Fire Brick Technology
How to Remove and Clean Your Gas Fireplace Glass
How to Remove and Replace a Stove Rope Gasket
REF#
SKU
Name
Price
Qty
1
AC07867
Chrome Plated Coil Handle
Each
$8.75
add to cart
3
AC06500
Rope Gasket Kit
Each
$15.47
add to cart
4 (D1) / 5 (D2)
30055
Hinge Pin Retaining Ring 1/2"
Each
$1.20
add to cart
5 (D1) / 4 (D2)
30170
Hinge Pin
Each
$2.00
add to cart
6
SE63001
Century Glass 9 9/16" x 17 5/16"
Each
$190.76
add to cart
7
AC06400
White Glass Gasket Kit
Each
$15.52
add to cart
8
PL55105
Glass Retainer Frame
Each
$15.00
add to cart
9
PL55106
Glass Retainer Frame
Each
$15.00
add to cart
15
AC07863
Chrome Plated Coil Handle
Each
$12.30
add to cart
16
44085
Rheostat Knob
Each
$8.00
add to cart
17
SE63133
Fan Assembly CW2500
Each
$321.56
add to cart
18
44087
Rheostat nut
Each
$1.00
add to cart
19
44080
Rheostat with nut
Each
$34.85
add to cart
25 (D1)/ 24 (D2)
29020
Fire Bricks
Pack of 6
$66.15
add to cart
33
PL63041
Rear and Middle Secondary Air Tube
Each
$75.00
add to cart
33 (D2)
21413
C-Cast Baffle 20 1/2" x 6 1/16"
Each
$59.96
add to cart
34 (D1)
21219
C-Cast Baffle 21" x 6 1/16"
Each
$81.75
add to cart
34 (D2)
21411
Insulation Blanket 21 1/2" x 3"
Each
$18.75
add to cart
