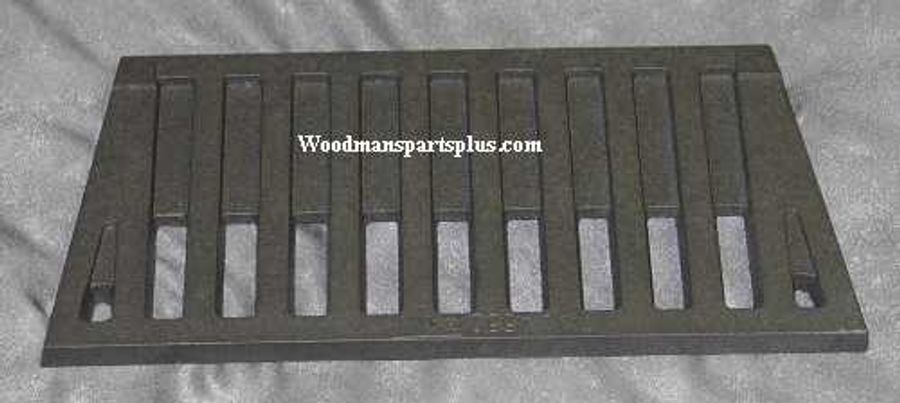

Consolidated Dutchwest 224AL (1980-1982) - This model has one slider grate with a right side vertical shaker bar. This model has no catalyst or bypass system and no side door. The flue collar bolts on the top and back and has a cover plate to use on the unused opening. All parts are the same as the 224ACL.

Consolidated Dutchwest 224AL (1982-1983) - This model has one slider grate with a right side vertical shaker bar. This stove has no catalyst or bypass system. The flue collar bolts on the top or back and it has a cover plate to use on the unused opening. All parts are the same as the 224ACL.

Consolidated Dutchwest 224ACL (August 1984 to July 1986) - This model has a catalyst, a simple bypass system and a boot plate. It does not have tertiary air.

Consolidated Dutchwest 224ACL (1986-1988) - This model was a production model when VCI purchased CDW. All parts not listed are the same as the 1989 production model. This stove has a catalyst, tertiary air, a locking bypass system, and cooktop.

Consolidated Dutchwest 224ACL A Plus was manufactured from 1988-1989.

The first diagram is for model 224ACL (1984-1986)

The second diagram is for model 224ACL A Plus

Consolidated Dutchwest 224ACL Parts List

Consolidated Dutchwest 224ACL A Plus Parts List
