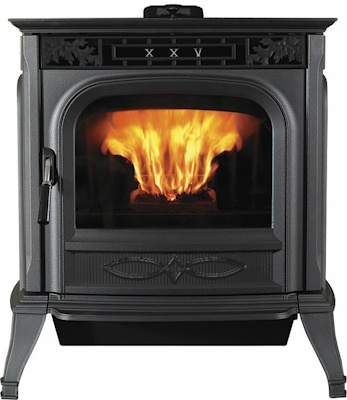

Harman Pellet Stove XXV-TC

Stocked parts for the Harman XXV-TC pellet stove are listed below
Call for availability of other parts 800-522-8216

Harman XXV-TC Manual

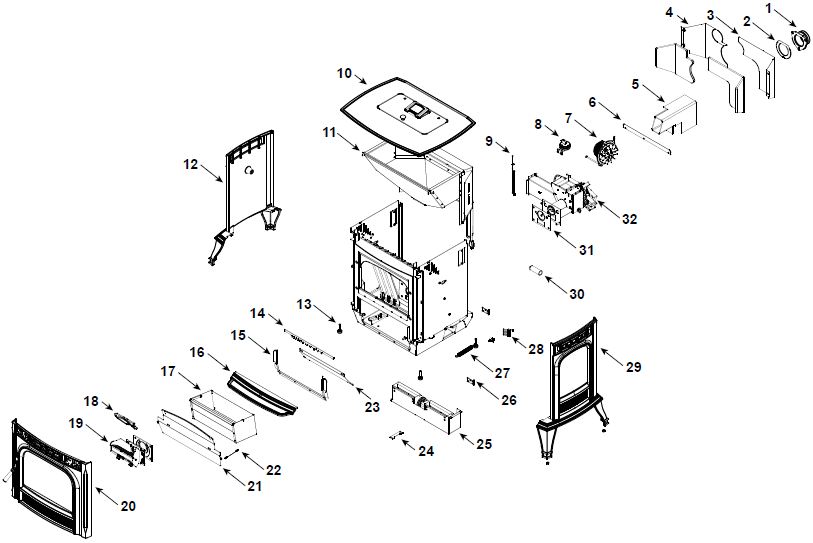

Harman XXV-TC Parts List

Articles

Harman Stoves Stove Maintenance
Benefits of a Pellet Stove
What is a Burn Pot?
How to replace the auger on your pellet stove
Troubleshooting Your Pellet Stove Auger
How to replace your pellet stove igniter
REF#
SKU
Name
Price
Qty
1-00-05372
Harman Power Board
Each
$429.48
add to cart
1-00-05237
Harman 5 Amp Ceramic Fuse
5 Pack
$38.00
add to cart
1-00-00247
Wooden Handle with Bolt
Set
$23.00
add to cart
2-00-773850
Harman Stove Burn Pot Scraper
Each
$7.50
add to cart
3-20-72662
Communication Cable
Each
$21.52
add to cart
1-00-00637
Harman Stove Draft Meter
Each
$1,279.00
add to cart
3-20-08780
Return Air Sensor
Each
$26.00
add to cart
3-20-777556
Harman Wireless Room Sensor
Each
$224.48
add to cart
3-42-0014
Touch-up Paint - Brown Majolica
Each
$24.00
add to cart
1
3-00-247237
Harman Tail Pipe 3"
Each
$37.92
add to cart
2, 31
1-00-07381
Harman Stove Burn Pot and Tailpipe Gasket
Each
$9.99
add to cart
7
1-00-02275
Harman Combustion Blower and Capacitor
Each
$418.00
add to cart
7
1-10-574500A
Blower Fan Blade
Each
$62.00
add to cart
9
3-20-00844
Harman Stove ESP Probe
Each
$28.24
add to cart

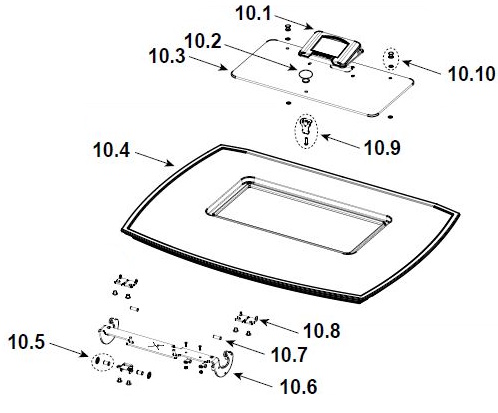

10.1
1-00-777552
Harman Touch Control
Each
$559.00
add to cart
10.2
3-43-02000-1
Harman Stove Black Knob
Each
$41.00
add to cart
10.4
1-00-375501
Harman Stove Hopper Top Gasket
Per Foot
$8.00
add to cart
10.10
1-00-129004
Harman Hardware
Each
$2.00
add to cart
11
3-44-677185
Harman Hopper Throat Gasket
Each
$18.46
add to cart
13
1-00-12302
Stove Leveler 4 Pack
Pack
$47.00
add to cart
18
3-00-03000
Harman Stove Flame Guide
Each
$34.99
add to cart
19.1
1-10-00675
OEM Burn Pot
Each
$281.00
add to cart
19.2
3-20-677200
Harman Igniter (Aftermarket)
Each
$47.06
add to cart
19.2
3-20-677200A
Harman Igniter (OEM)
Each
$183.48
add to cart
19.3
1-00-777907
Adjustable Igniter Bracket
Each
$40.00
add to cart
19.4
3-31-782108
Harman Thumb Screws - Set Of 2
Set Of 2
$2.36
add to cart
19.5
1-00-06623
Harman Stove Burnpot Cleanout Cover
Each
$30.00
add to cart

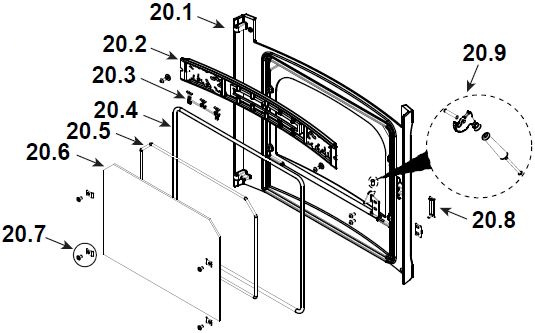

20.5
3427
3/16" x 9' - Black Window Channel Gasket
Each
$8.71
add to cart
20.6
3-40-677000
Harman Glass 17 1/8" x 12 3/16"
Each
$337.22
add to cart
20.7
1-00-249140
Harman Stove Glass Clips
Each
$47.00
add to cart
20.9
1-00-249119
Harman Stove Latch Assembly
Each
$84.00
add to cart
25
1-00-29145
Harman Distribution Blower (Aftermarket)
Each
$150.00
add to cart
25
1-00-29145A
Harman Distribution Blower (OEM)
Each
$408.98
add to cart

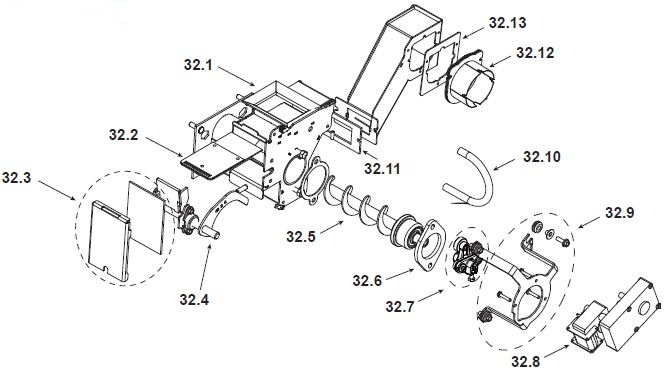

32.3
1-00-677122
Harman Feed Cover w/Gasket
Each
$58.00
add to cart
32.4
1-10-677187W
Harman Stove Pusher Arm
Each
$70.00
add to cart
32.4
3-31-3614087
Harman Stove Pillow Block
Each
$18.82
add to cart
32.5
3-50-00565
Harman Stove Auger
Each
$137.00
add to cart
32.5
1-00-888196
Harman Auger Gasket
Each
$25.00
add to cart
32.6
3-31-3014
Harman Stove Cam Bearing
Each
$10.00
add to cart
32.8
3-20-00677
Harman Stove Ultra Feeder Gear Motor
Each
$199.88
add to cart
32.11
3-44-677160
Harman Ultra Air Intake Gasket
Each
$7.84
add to cart
32.13
3-44-72224
Harman Feeder Air Intake Gasket
Each
$2.00
add to cart
